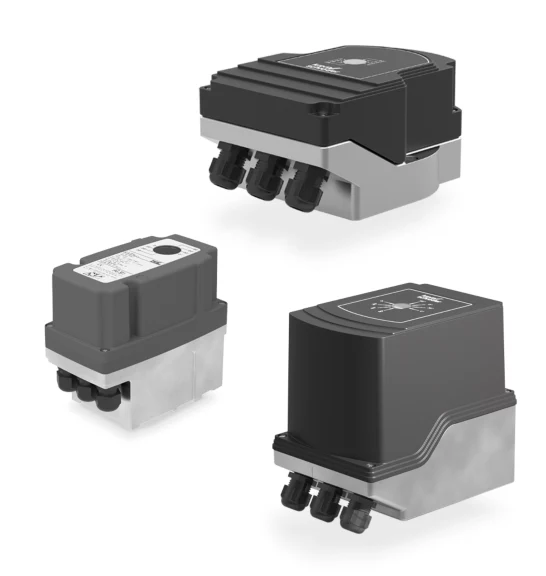

Actuators IC

A Honeywell Kromschroeder product. Reversible gear motor to transmit rotary movements between 0 and 90°, for actuation of gas and air valves

Features & Benefits:

• IC 20, IC 30, IC 50 with voltage-free limit switches, Automatic/Manual mode changeover, position feedback and externally readable position indicator
• IC 50 also with selectable direction of rotation
• IC 40 for complex applications with programmable functions for flexible adjustment to the process, with statistics and fault history to support service personnel
• Running time:
  • IC 20: 7.5 to 60 s,
  • IC 30: 30 and 60 s,
  • IC 50: 3.7 to 60 s
  • IC 40: programmable
• Mains voltage:
  • IC 20: 120 to 230 V AC,
  • IC 30: 24 V DC,
  • IC 40: 100 to 230 V AC,
  • IC 50: 24 to 230 V AC
• Torque:
  • IC 20, IC 40: 2.5 (at 50 Hz) and 3 Nm,
  • IC 30: 3 Nm,
  • IC 50: 3 to 30 Nm,
• Controlled by
  • IC 30: three-point step
  • IC 20, IC 50: three-point step or continuous signal,
  • IC 40: three-point step, two-point, PLC or continuous signal
