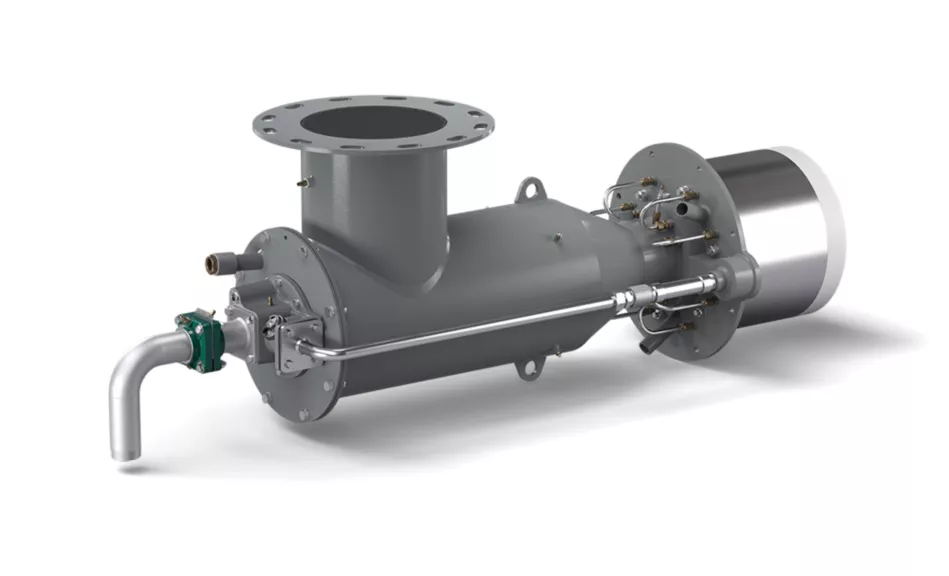

KINEDIZER® Staged LE

A Honeywell Maxon burner, the KINEDIZER® Staged LE burner is a nozzle-mix, medium-velocity design. Using advanced mixing technology, the burner produces low emissions with very little excess air. Ruggedly built with a reinforced refractory block and steel burner body and nozzle, it burns natural gas, propane or other gaseous fuels. Combustion air is supplied with an external blower. Accurate air and fuel modulation can be accomplished by fuel-air ratio control technology such as Smartlink or Slate.KINEDIZER® Staged LE burners can be used in all direct fired high temperature air heating applications. It combines flexibility and stability with high turndown and the lowest available NOX emissions. The use of KINEDIZER® Staged LE burners in indirect applications above 7000 Btu/h/inch2 (3155 kW/m2) requires special consideration and has separate cataloged values.The primary applications for this burner are thermal oxidizers, helical coil fluid heaters, and high temperature direct processes. Each of these applications will subject the burner to very different environments.For support in your application, contact your local sales representative.

Features & Benefits:

• Field proven low emissions. State-of-the-art low NOX firing – adjustable for application flexibility
• Lower NOX and less excess air than KINEDIZER® LE burners
• Rugged design for oxidizers, process heaters, kilns, furnaces, dryers, waste incineration and other high temperature applications
• Burns natural gas, propane, or other fuel gases
• Provides excellent stirring and mixing with its medium velocity exhaust
• 80% hydrogen fuel mixture by volume possible
