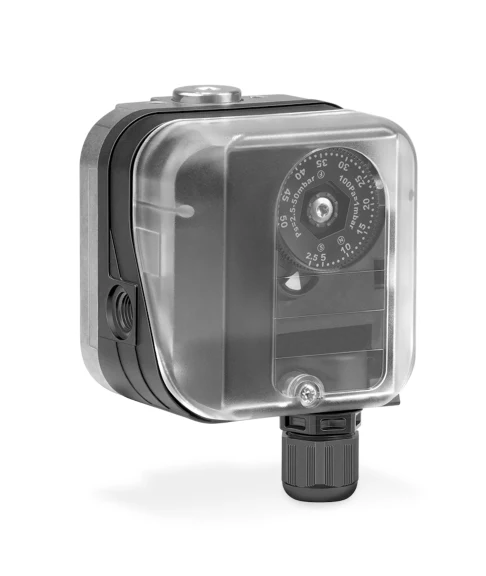

Kromschroeder DG pressure switches for gas

A Honeywell Kromschroeder product. DG Pressures Switches are for monitoring positive gas- and air-pressure, and for negative and differential air-pressures.  The DG version is the European Version and the DG..T is the US version.
Both versions offer switching point adjustment via setting dial, are silicon free, and operate with the following media: Gas, air, flue gasses for positive pressure; Air and flue gasses for negative/differential pressure. For available accessories, see technical documentation.

Model DG: (European Version)

• EU certified, AGA, EAC approved, RoHS compliant
• Range: 0.4 to 500 mbar (0.16 to 200 “WC)
• Pneumatic Connections: Internal Rp 1/8″ 2x, Rp 1/4″ 2x
• Siver contacts, 24-250V AC, 0.05-5A
• Gold contacts, 5-250V AC, 0.01-5A
• Electrical connection:
  • Screw terminals, M16x1.5 cable gland
  • 4-Pin plug and socket

Model DG..T: (US Version)

• UL Listed, FM Approved
• Range: 0.2 to 200″ WC
• Pneumatic Connections: Internal Rp 1/4″ NPT, 1/8″ NPT
• Siver contacts, max 240V AC, 5A
• Gold contacts, max 30V AC/DC, 0.05A
• Electrical connection:
  • Screw terminals, M16x1.5 cable gland
  • Screw terminals, 1/2″ NPT cable conduit
  • 4-Pin plug and socket
• Optional Locking/manual reset
