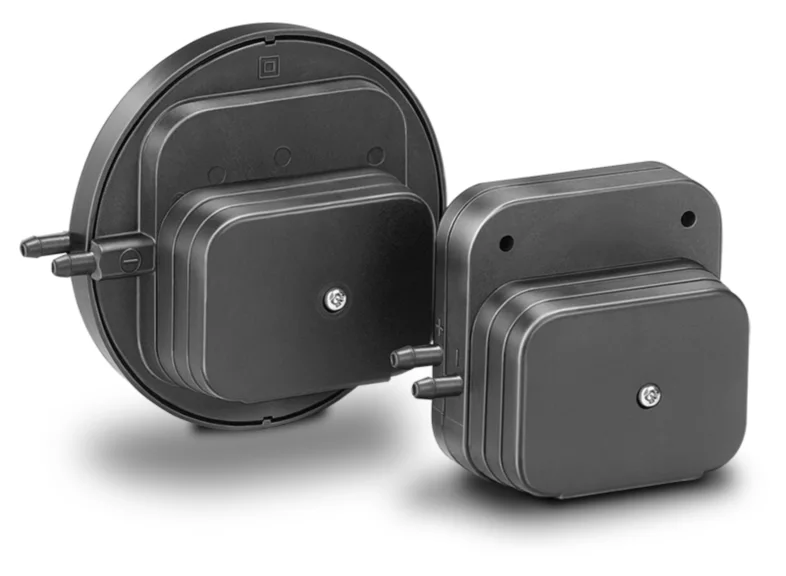

Kromschroeder DL..E pressure switches for air

A Honeywell Kromschroeder product. For monitoring air and flue gas pressures, for positive pressure, negative pressure and differential pressure.

• Certificates: EU certified, UR listed, FM, AGA approved and EAC, RoHS compliant
• Setting: Switching point adjustment via adjustment screw
• Medium: Air, flue gas, non aggressive gas
• Range:
  • Model DL1-50E: 0.2 to 50 mbar (0.08 to 20″WC)
  • Model DL2,4,14,35E: 30 to 3500Pa (0.12 to 14.1″ WC)
• Pneumatic connections:  Tube connections
• Contacts/Switching Capacity:
  • CE version:
    • Siver contacts, 24-250V AC, 0.05-5A
    • Gold contacts, 5-250V AC, 0.01-5A
  • UL versions:
    • Gold contacts, max 30V AC, 0.05A
    • Siver contacts, 30-240V AC, 5A
• Electrical connection: 6.3×0.8 AMP connectors (UR recognized)
• Silicon free
• For available accessories see documentation
