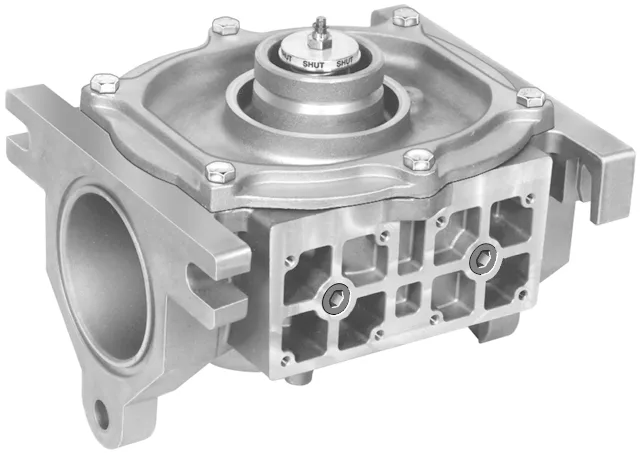

V5097 Integrated gas valve train

Safety shutoff valves used with V4055 and V4062 fluid power actuators to control gas flow to commercial and industrial burners.

Features & Benefits:

• Use with natural or LP gases
• Mount directly in gas supply line
• Two Valve body types. Small body type for 3/4 in., 1 in., 1-1/4 in., 1-1/2 in., 2 in. pipes. Large body types for 2 in., 2-1/2 in. and 3 in. pipes
• Seven pipe adapter sizes from 3/4 in. to 3 in. have NPT or BSP threaded connections
• Provides three 1/4 in. upstream and two 1/4 in. downstream tap and plug
• CE version provides an additional downstream tap and plug
• Yellow SHUT indicator attached to the valve stem provides an indication of the valve closed position
• V5097A, C Valves are for on-off service
• V5097B Valve has a characterized guide and in combination with the V4055, V4062 and V9055 Fluid Power Actuators, provides slowopening, HI-LO-OFF, and modulating functions, respectively
• V5097C Valves have a double seal and are used with V4055D, E
• Actuators to provide proof-of-closure switch and valve seal overtravel interlock
• Two valve body types (small and large) applicable to server pipe size
• Operating Temperature Range: -40°F to +150°F; When used with V9055 – -40°F to +125°F (-40°C to +66°C; When used with V9055 – -40°C to +52°C)
• Approvals, Underwriters Laboratories Inc.: When used with V4055A, B, D, E, V4062: Listed, File No. MH1639 Guide No. YIOZ
• Approvals, CSA: When used with V4055, V4062, and V5097: Certified, General listed File No. 158158, Class 3371 for USA and Canada
• Approvals, Swiss RE: When used with the V4055A, G: Approved, Report Nos. 20698, 20835, 21172, and 24061
• Approvals, CE: CE #E3070 (Gastec)
• Comments: Select Proper Pipe Adapter
• Includes: Three 1/4 in. -18 NPT upstream and two 1/4 in. -18 NPT downstream taps
• Used With: V4055; V4062
