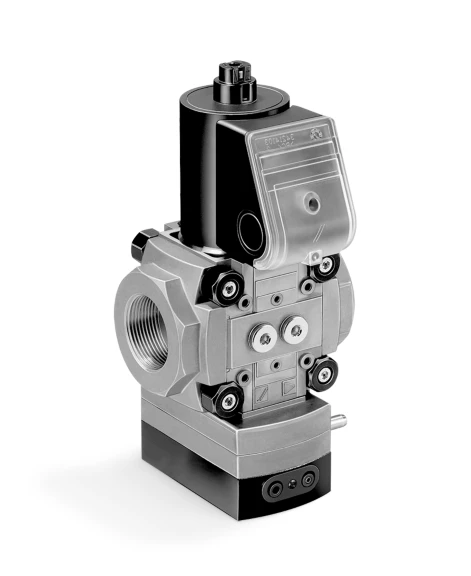

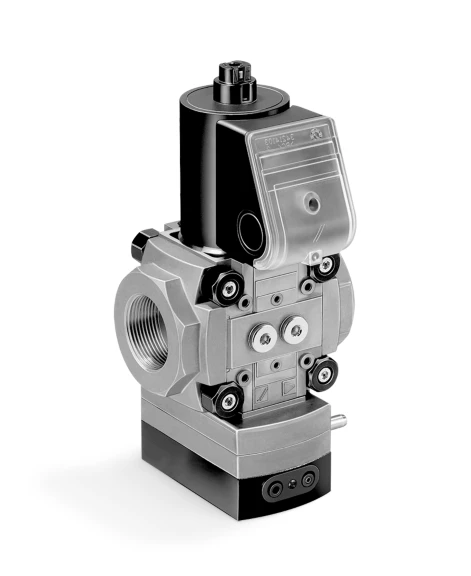

VAD-VAG-VAH-VAV pressure regulators with solenoid valve

A Honeywell Kromschroeder product. For safeguarding and control of the gas pressure

Features & Benefits:

• Class A pressure regulator to EN 88
• Class A solenoid valve to EN 161, for gas, air and biologically produce d methane
• pu max. 500 mbar (7 psig)
• With pilot lamp
• IP 65
• FM and SA approved
• Size 1
• EU certified
• No inlet flange
• Outlet: DN 15 (1/2”) Rp internal thread
• Quick opening, quick closing
• Mains voltage: 24 V DC Electrical connection: M20 cable gland
• Attached to the right side of the connection box: M20 cable gland
• Outlet pressure range: 35-100 mbar
• Valve seat: reduced Accessories, right: pressure switch, 30-110 mbar
• Test point of right-hand pressure switch: outlet pressure Accessories, left: 2 screw plugs
