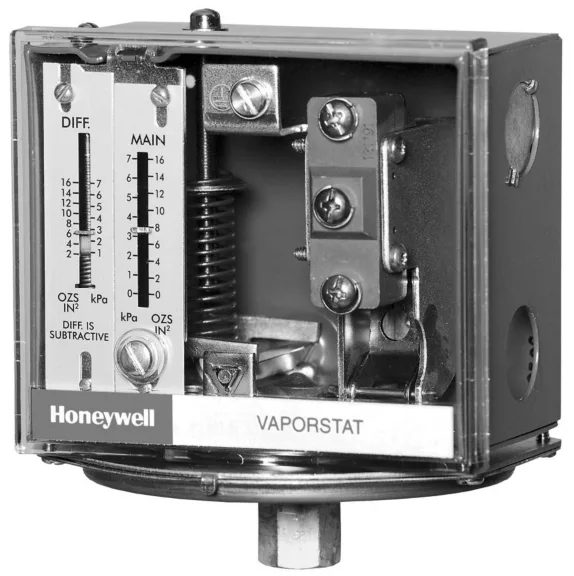

Vaporstat ® Controllers L408J

Features & Benefits:

• Primarily for use in vapor heating systems, but also may be used with liquids, air, and other noncombustible gases
• Stainless steel diaphragm also allows use with ammonia, oxygen, distilled water, and similar media
• Maximum surge pressure of 15 psi (103.4 kPa)
• All models have an adjustable subtractive differential
• Adjustments are made by screws on top of case
• Scaleplates are marked in English (psi) and metric (kPa) units
• Case has clear plastic cover so that pressure settings can be observed
• Hexagonal fitting with 1/4-18 NPT internal threads for direct mounting to the 50024585-001 Brass or 14206 Steel Steam Trap (siphon loop)
• Can also be surface mounted by screws through holes (knockouts) in back of case
• Ground screw terminal
